PELCO EasiSlicer


Introducing the NEW STANDARD in tissue slicing.




PELCO easiSlicer   EB+GFAP+DAPI - 50╬╝m - P. Nahirney Affordable Quality.
A fresh approach to traditional standards, the PELCO easiSlicer brings precision vibratory tissue slicing to labs of all sizes.
  Cresyl Violet 50╬╝m - C. Meshul - Portland VAMC Consistent Reliability.
Solid construction and exceptional stability provides exacting control of section thickness with minimal z-axis vibration.
  EB+GFAP+DAPI - 50╬╝m - P. Nahirney Simple Versatility.
Simple, effective, manual design makes the PELCO easiSlicer perfect for multi-user and multi-application labs.
  EB+GFAP+DAPI - 50╬╝m (Top/Bottom) - P. Nahirney - UVic, B.C.; Cresyl Violet 50╬╝m (Center) - C. Meshul - Portland VAMC

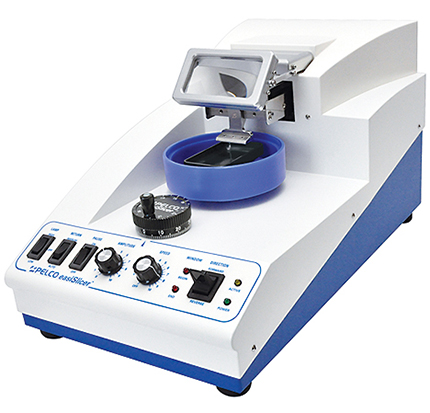

The PELCO easiSlicer introduces the new standard in vibratory slicing. It combines ease of operation, precise engineering and affordable pricing in a high quality instrument. The PELCO easiSlicer uses rigid construction and advanced engineering technologies to essentially eliminate backlash resulting in minimal Z-axis vibration normally associated with more expensive vibratory slicers. All operational controls are located on the front of the instrument, clearly labeled and sealed against moisture. The specimen tray is held securely in the polypropylene bath by a set of strong magnets. The bath is attached from the side with a unique spring-loaded base that locks onto the PELCO easiSlicer by simple pressure. The integrated bath and tray design allows them to move as a unit for sectioning thickness or height adjustment. The bath and tray can be easily separated for simple and fast clean-up, eliminating the risk of leaks and a cumbersome drain or hose.

The amplitude and speed controls are conveniently mounted in the center of the control panel for ease of operation. The sturdy, removable blade holder is offered in 3 angles: fifteen, eighteen and twenty-one degrees to provide choice for each individual application. This eliminates the need to calibrate the blade angle. The specialized design of the blade holder provides a secure and rigid grasp of the cutting blade. This stability of design removes the weakening or bending of parts as seen in a spring clamp design. Feather« Blades are recommended but the blade holder will accommodate other types of blades. The Sectioning Window Controls guide the user for precise cutting window control with indicator lights on the control panel to maintain consistency of placement.

The Magnifier and Light Assembly offers bright white LED lighting (no risk of high temperatures) with high or low settings, depending on the user's need. The Magnifier can be moved out of the viewing path, if desired. The entire assembly operates smoothly on metal slides.

The large Section Thickness Knob is centrally located in the work area. The knob is labeled in microns and has a perceptible detent every 5 microns. One complete revolution of the knob is 100 microns. The entire bath and tray assembly is raised and lowered by this Section Thickness Knob. The PELCO easiSlicer has a Return Switch that provides the user with an option for Auto Return after each slice. In the Manual Return mode, the cutting will cease once the end of the section window has been reached. This allows the retraction of the specimen before the return of the blade in order to prevent damage to the specimen.

The PELCO easiSlicer comes equipped with tools and supplies to start cutting quality, consistent sections, right out of the box.


PELCO easiSlicer Product Intro

Features & Benefits

  • Precision design for accurate, high quality sections with minimal z-axis vibration
  • Novel bath design utilizes unique easy-locking base making it simple to clean
  • Anodized specimen tray magnetically locks onto bath
  • Optional magnetic base for tissue mounts available
  • Cuts sections to 40 microns
  • LED lights indicate active vibratory status and cutting window boundaries
  • Standard removable blade holder securely holds Feather« blades at a 15║
    preset angle; other optional angles available
  • Fully assembled, ready to use
  • Affordable pricing
  • Universal power supply 100-240V, 50/60Hz


PELCO easiSlicer Tray and Bath PELCO easiSlicer Magnifier LED Light PELCO easiSlicer Removable Blade Holder PELCO easiSlicer Removable Blade Holder
Novel bath design utilizes
unique easy-locking base
for secure and simple
attachment; no risk of
fluid leaking into the
instrument.
Magnifier/LED light
assembly avoids risk of
high temperature, offers
2X magnification and
convenient, smooth
operation.
Removable blade holder
with innovative tooling
for secure and rigid hold
of Feather« blades at
15║ angle.
Convenient Blade Holder Rest (11030) facilitates easy blade exchange.

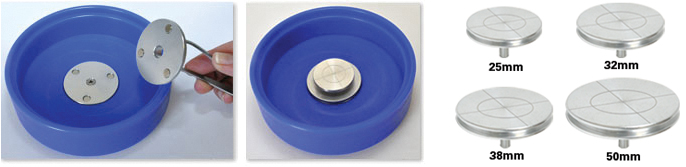

Optional base for tissue mounts (11014) magnetically locks
into bath in place of specimen tray as shown.
Four sizes of engraved tissue mounts available.

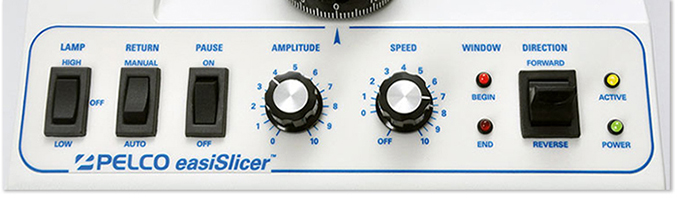

All operational controls are located on the front of the PELCO easiSlicer, clearly labeled and sealed against moisture. Easily visible LED lights indicate active vibratory status, an exclusive safety feature, and cutting window boundaries.




PELCO easiSlicer Specifications

Maximum Specimen Size
40 x 40mm (1.58" x 1.58")
Maximum Specimen Height
15mm (0.6")
Specimen Bath
Spring-loaded; polypropylene
Specimen Tray
Rectangular with magnet release.
Blade Type
Feather« blades recommended
Blade Angle
15░ standard; 18░, 21░ available
Sectioning Window
10 - 40mm (0.4" - 1.58")
Specimen Height Adjustment (Z-Axis)
15mm (0.59") total travel in 1mm increments; tactile click stops at 5mm
Cutting Arm Speed (Y-Axis)
Forward: 0 - 2.0mm/sec (0 - 0.08"/sec)
Reverse: 5mm/sec (0.2"/sec)
Travel: 40mm (1.58") total
Vibratory Amplitude (X-Axis)
0 - 1.00mm (0.04") total; continuously adjustable
Cutting Arm Frequency
50Hz ▒5 factory set
Magnification
2X magnifier
Illumination
LED illumination; LOW/OFF/HIGH
Dimensions
535 x 300 x 290mm (21.1" x 11.8" x 11.4")
Weight
16.8 kg (37lbs)
Utility Requirements
100 - 240V; 50/60 Hz; 345VA

PELCO easiSlicer Cutting Windows

PELCO easiSlicer Dial

PELCO easiSlicer Magnifier



Ordering Information for the PELCO easiSlicer

Prod # Description Unit Price
11000 PELCO easiSlicer Vibratory Tissue Slicer 1 P.O.R.
Included Accessories:
1 Black Anodized Tray (11020)
1 Bath (11010)
1 Specimen Retriever (101-33)
1 Blade Holder 15░ (11050-15)
1 Box of 10 Feather« Blades (121-9)
1 Bottle PELCO« Pro CA44 Tissue Adhesive, 20ml (10033)
1 PELCO easiSlicer Dust Cover (11060)
1 PELCO easiSlicer Blade Safe (121-25)
1 Hex Driver for Blade Holder (11052)
1 PELCO easiSlicer Blade Holder Rest (11055)
1 Set of Camel's Hair Brushes (11870)
1 Replacement Fuse (030-758)

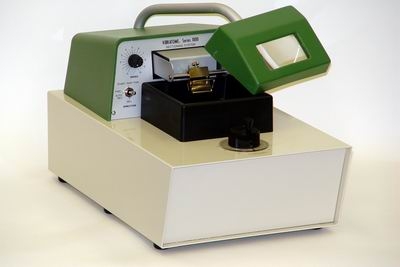

We can also offer you the Vibratome 8000 Sliding Microtome / Mcillwain Tissue Chopper 230V CE

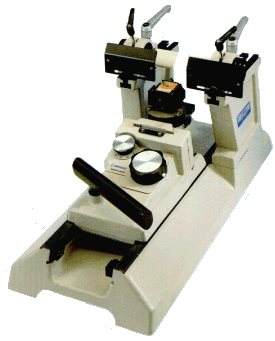

Vibratome 8000 Sliding Microtome

Clik para más información




PELCO easiSlicer Accessories

Prod # Description Unit
11010 PELCO easiSlicer Bath 1
11012 PELCO easiSlicer Magnetic Base for Tray 1
11020 PELCO easiSlicer Black Anodized Tray 1
11022 PELCO easiSlicer Blue Anodized Tray 1
11014 PELCO easiSlicer Magnetic Base for Tissue Mounts 1
11050-15 PELCO easiSlicer Blade Holder 15░ 1
11050-18 PELCO easiSlicer Blade Holder 18░ 1
11050-21 PELCO easiSlicer, Blade Holder 21░ 1
11052 PELCO easiSlicer Hex Driver for Blade Holder 1
11055 PELCO easiSlicer Blade Holder Rest 1
11060 PELCO easiSlicer Dust Cover 1
121-25 PELCO easiSlicer Blade Safe 1 x 4



PELCO easiSlicer Engraved Tissue Mounts

Prod # Description Unit
11030 PELCO easiSlicer Engraved Tissue Mounts Mixed-pak:(2ea) 25mm, (2ea) 32mm, (2ea) 38mm and (2ea) 50mm 1
11031 PELCO easiSlicer Engraved Tissue Mount, 25mm 1 x 5
11032 PELCO easiSlicer Engraved Tissue Mount, 32mm 1 x 5
11033 PELCO easiSlicer Engraved Tissue Mount, 38mm 1 x 5
11034 PELCO easiSlicer Engraved Tissue Mount, 50mm 1 x 5



Related Products

Feather Blades

Feather« Blades

Double Edge, Carbon Steel Blade
Sharp edges; may be broken in half lengthwise (protect fingers and use eye protection). The preferred cutting blade for use with the PELCO easiSlicer

Length: 42.8mm (1.685")
Cutting Edge Length: 36mm (1.42")
Width: 22mm (0.865")
Thickness: 0.127mm (0.0045")



Prod # Description Unit
121-9 Feather« Double Edge Cutting Blades, box of 10 1

Blade Safe

Blade Safe

Safely store up to 100 used blades for disposal. Discard when full.

Length: 69.85mm (2.75")
Width: 50.8mm (2")
Height: 38.1mm (1.5")
Blade Slot Length: 60.325mm (2.375")



Prod # Description Unit
121-25 PELCO easiSlicer Blade Safe 1 x 4


Specimen Retrievers

PELCO« Pro Specimen Retrievers

This is a perfect tool for retrieving free floating sections from the bath. Made of glass.



Prod # Description Unit
101-33 PELCO« Pro Specimen Retrievers 1 x 5



PELCO Pro CA44 Tissue Adhesive

PELCO« Pro CA44 Tissue Adhesive

PELCO« Pro CA44 is an instant tissue adhesive based on cyanoacrylate. Developed to glue tissue on specimen holders used in vibratory microtomes. Although the tissue adhesive is instable in boiling water, it is recommended to use #19920 PELCO« Pro Cyanoacrylate Debonder to remove or clean cured cyanoacrylate. Supplied in 20ml bottle with dispenser tip, closed with PTFE coated steel pin for optimum seal.
Compatible to Loctite 404 tissue adhesive.
I - MSDS





Prod # Description Unit
10033 PELCOTM Pro CA44 Instant Tissue Adhesive, 20ml 1



Camel's Hair Brushes

Camel's Hair Brushes

Useful for histology section manipulation, SEM, geology, forensic. Seamless ferrules, red enameled handles. Tips shown actual size.



Prod # Description Unit
11859 Camel's Hair Brushes, #1 1 x 3
11860 Camel's Hair Brushes, #2 1 x 3
11862 Camel's Hair Brushes, #4 1 x 3
11870 Set, Camel's Hair Brushes, #1, #2, #4 1 x 3




Camel's Hair Brush

Camel's Hair Brush for larger brushing work on specimens.



Prod # Description Unit
11878 Camel's Hair Brush, #6 1 x 3




Red Sable Brushes

Red Sable Brushes

For precise manipulation of TEM specimen grids and samples, dusting of SEM samples and photographic materials or photographic spotting. Sable hairs are springy and relatively fine, which gives them a special place in the microscopist's tools armory. Length of hairs are short for better manipulation.

Enameled wood handles and seamless nickel ferrules. Offered in packages of 3 brushes.

Prod # Description Unit
11806 Sable Brushes, Width at Ferrule .08mm, Length at ferrule 4.0mm, #00000 1 x 3
11807 Sable Brushes, Width at Ferrule 1.0mm, Length at ferrule 6.0mm, #000 1 x 3
11808 Sable Brushes, Width at Ferrule 1.0mm, Length at ferrule 7.0mm, #00 1 x 3
11810 Sable Brushes, Width at Ferrule 1.3mm, Length at ferrule 8.0mm, #0 1 x 3
11812 Sable Brushes, Width at Ferrule 1.5mm, Length at ferrule 9.5mm, #1 1 x 3
11814 Sable Brushes, Width at Ferrule 1.8mm, Length at ferrule 11.5mm, #2 1 x 3
11816 Sable Brushes, Width at Ferrule 2.0mm, Length at ferrule 13.0mm, #3 1 x 3




tissue culture plate
36168-6 6-Ccavity
Tissue Culture Plate
tissue culture plate
36170-12 12-Cavity
Tissue Culture Plate

tissue culture plate
36172-24 24-Cavity
Tissue Culture Plate

Corning Costar« Tissue Culture Plates

Tissue Culture-treated Plates are designed for a wide range of applications including general cell growth experiments, cloning studies, virus isolation and in vitro testing.

Plate bottoms have a uniform thickness, allowing for distortion-free observation. Alphanumeric coordinates are placed on the same focal plane as cell growth, for convenient referencing of cell position. Gripping edges make handling easier.

All plates have non-reversible covers with condensation rings to minimize evaporation and the risk of contamination.

Plates are made of optically clear, medical-grade non-pyrogenic polystyrene, TC-treated, sterile and are used for processing of tissue on the bench or in the microwave. The corresponding Wellplate Inserts (below) are No. 36168 for the 6 cavity, No. 36170 for the 12 cavity, and No. 36172 for the 24 cavity.

Prod # Description Unit
36168-6 Tissue Culture Plate, 6 wells 1 x 50
36170-12 Tissue Culture Plate, 12 wells 1 x 50
36172-24 Tissue Culture Plate, 24 wells 1 x 50


wellplate insert for microwave processing
36168
6-Wellplate Insert

wellplate insert for microwave processing
36170
12-Wellplate Insert

wellplate insert for microwave processing
36172
24-Wellplate Insert

PELCO Prep-Eze Rectangular Wellplate Inserts

The rectangular polypropylene Wellplate Inserts have 6, 12, or 24 wells and will fit into the Corning Costar« Tissue Culture Plates, which is the standard 6/12/24 Wellplate design. A 420Ám opening, polypropylene mesh is at the bottom of each of the insert wells.

Outer Dimensions: 81.3mm W x 123.5mm L x 2.4mm H (3.2" W x 4.86" L x .88" H)

Well dim. of 6-wellplate inserts: 24.1mm dia x 22.3mm D (.95" dia x .88" D)
Well dim. of 12-wellplate inserts: 14.2mm dia x 22.3mm D (.56" dia x .88" D)
Well dim. of 24-wellplate inserts: 11.2mm dia x 22.3mm D (.44" dia x .88" D)
Depth of well from top to bottom on all Wellplate Inserts: 17.68mm (.696")

Prod # Description Unit
36168 PELCO Prep-Eze 6-wellplate Insert 1
36170 PELCO Prep-Eze 12-wellplate Insert 1
36172 PELCO Prep-Eze 24-wellplate Insert 1
36168-8 6-well Insert (or 24.1mm dia.) Replacement Mesh, 420Ám 1 x 30
36170-14 12-well Insert (or 14.2mm dia.) Replacement Mesh, 420Ám 1 x 36
36170-24 24-well Insert (or 11.2mm dia.) Replacement Mesh, 420Ám 1 x 48

PELCO Technical Notes, PELCO Prep-Eze Rectangular Wellplate Inserts - Instructions (PDF File)





individual wells for specimen processing

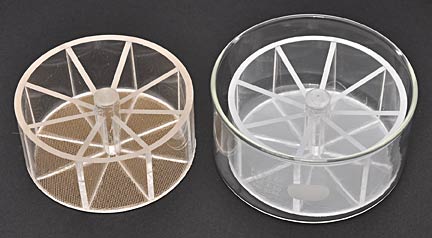

8-Section Staining Nets

Dimensions: 3-1/2" diameter x 1-1/2" high (89 x 38mm). Available with netting of 32 mesh (left) or 64 mesh (right, shown in Staining Dish 36754-60). Rod in center of net can be grasped to lift net from Staining Dish.



Prod # Description Unit
36154-32 8-Section Staining Net, 32 mesh 1
36154-64 8-Section Staining Net, 64 mesh 1

Para información adicional de nuestros equipos, accesorios o productos llámenos al 91 408 16 25
