MATERIAL DE MICROSCOPIA ELECTRÓNICA



Metal Sputtering Targets

Metal sputtering targets are available for all sputter coaters that we currently manufacture, as well as for previous models manufactured with the brand names Emscope, Emitech, Polaron, Bio-Rad, Fisons Instruments and Thermo VG.

Tarjetas QUORUM

E5000 Sputter Targets

E5000 Sputter Targets

These targets are fitted to the E5000, E5200, E5400, SC502, SC7610 and SC7620 sputter coaters. Targets are 57mm foil, 0.1mm thick or 0.2mm thick.







Part number Description
  • SC502-314A Gold (Au) 0.1mm thick
  • SC502-314B Gold/palladium (Au/Pd) 0.1mm thick>7li>
  • SC502-314C Platinum (Pt) 0.1mm thick
  • SC502-314D Nickel (Ni) 0.1mm thick
  • SC502-314E Silver (Ag) 0.1mm thick
  • SC502-314G Palladium (Pd) 0.1mm thick
  • SC502-314A/0.2mm Gold (Au) 0.2mm thick
  • SC502-314B/0.2mm Gold/palladium (Au/Pd) 0.2mm thick
  • SC502-314C/0.2mm Platinum (Pt) 0.2mm thick

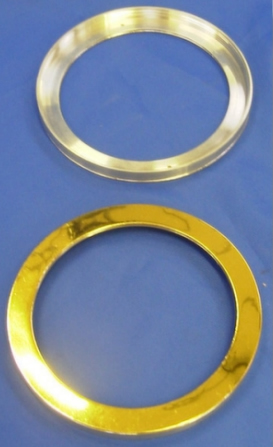

E5175 Sputter Coater Targets

E5175 Sputter Targets

These targets are fitted to the E5175 Sputter Coater. Targets are annular (115mm OD, 92mm ID), 0.1mm thick and supplied as an assembly mounted on an aluminium ring holder.





Part number Description
  • E5175-314A Gold (Au)
  • E5175-314B Gold/palladium (Au/Pd)
  • E5175-314C Platinum (Pt)
  • E5175-314D Nickel (Ni)
  • E5175-314E Silver (Ag)



K500X and K550X Sputter Targets

K500X and K550X Sputter Targets

These targets are fitted to the K500X and K550X sputter coaters. Targets are 60mm diameter x 0.1mm thick and mounted onto an aluminium backing plate.

NB: The K500X and K550X are fitted as standard with a 0.1mm thick gold (Au) sputtering target (TK8842)



Part number Description
  • TK8842 Gold (Au) 60mm x 0.1mm thick
  • TK8843 Gold/palladium (Au/Pd) (80:20) 60mm x 0.1mm thick
  • TK8844 Platinum (Pt) 60mm x 0.1mm thick
  • TK8873 Silver (Ag) 60mm x 0.1mm thick
  • TK8874 Nickel (Ni) 60mm x 0.1mm thick
  • TK8885 Palladium (Pd) 60mm x 0.1mm thick
  • TK8898 Platinum/palladium (Pt/Pd) 60mm x 0.1mm thick



K575X, K575XD and Q150 Sputter Targets

K575X, K575XD and Q150 Sputter Targets
These targets are fitted to the K575X, K575XD and Q150 sputter coaters. Targets are foil type and mostly 57mm diameter (though some metals are 54mm). Foil thickness varies.

NB: The Q150T S and Q150T ES are fitted as standard with a 0.3mm thick chromium (Cr) sputtering target (TK8845).



Part number Description
  • TK8845 Chromium (Cr) 54mm x 0.3mm
  • TK8846 Tungsten (W) 57mm x 0.5mm
  • TK8859 Gold (Au) 57mm x 0.1mm
  • TK8860 Gold/palladium (Au/Pd) 57mm x 0.1mm
  • TK8861 Platinum 57mm (Pt) x 0.1mm
  • TK8862 Chromium (Cr) 54mm x 1.5mm
  • TK8867 Tungsten (W) 57mm x 0.2mm
  • TK8869 Carbon (C) 54mm x 1.5mm
  • TK8870 Copper (Cu) 57mm x 0.1mm
  • TK8871 Silver (Ag) 57mm x 0.1mm
  • TK8872 Nickel (Ni) 57mm x 0.1mm
  • TK8875 Aluminium (Al) 57mm x 1.0mm
  • TK8877 Palladium (Pd) 57mm x 0.1mm
  • TK8878 Platinum/palladium (Pt/Pd) (80:20) 57mm x 0.1mm
  • TK8879 Titanium (Ti) 57mm x 1.5mm
  • TK8887 Platinum/palladium (Pt/Pd) (80:20) 57mm x 0.3mm
  • TK8889 Gold (Au) 57mm x 0.3mm
  • TK8891 Gold/palladium (Au/Pd) (60:40) 57mm x 0.3mm
  • TK8893 Platinum (Pt) 57mm x 0.3mm
  • TK8895 Titanium (Ti) 57mm x 0.5mm
  • TK8897 Iron (Fe) 57mm x 0.1mm
  • TK8899 Iridium (Ir) 57mm x 0.2mm
  • TK8900 Cobalt (Co) 57mm x 0.1mm
  • TK8902 Tin (Sn) 57mm x 0.1mm
  • TK8903 Molybdenum (Mo) 57mm x 0.1mm
  • TK8905 Magnesium (Mg) 57mm x 0.3mm
  • TK8906 Tantalum (Ta) 57mm x 0.1mm
  • TK8907 Indium tin oxide (ITO) 57mm x 0.3mm
  • TK9000 Aluminium (Al) 57mm x 0.76mm



SC500 and SC500A sputter coaters

SC500 Sputter Targets

These targets are fitted to the SC500 and SC500A sputter coaters. Targets are a nominal 58mm diameter x 0.1mm thick and bonded onto an aluminium backing plate.





Part number Description
  • SC500-314A Gold (Au)
  • SC500-314B Gold/palladium (Au/Pd)
  • SC500-314C Platinum (Pt)
  • SC500-314D Nickel (Ni)
  • SC500-314E Silver (Ag)
  • SC500-314G Palladium (Pd)



SC510 Sputter Coater Targets

SC510 Sputter Targets

These targets are fitted to the SC510, SC515, E5100, SC7640 and SC7680 sputter coaters. Targets are annular (82mm OD, 60mm ID), 0.1mm or 0.2mm thick and supplied as an assembly mounted on an aluminium ring holder.





Part number Description
  • SC510-314A Gold (Au) 0.1mm thick
  • SC510-314B Gold/palladium (Au/Pd) 0.1mm thick
  • SC510-314C Platinum (Pt) 0.1mm thick
  • SC510-314D Nickel (Ni) 0.1mm thick
  • SC510-314E Silver (Ag) 0.1mm thick
  • SC510-314G Palladium (Pd) 0.1mm thick
  • SC510-314CU Copper (Cu) 0.1mm thick
  • SC510-314A/0.2mm Gold (Au) 0.2mm thick
  • SC510-314B/0.2mm Gold/palladium (Au/Pd) 0.2mm thick
  • SC510-314C/0.2mm Platinum (Pt) 0.2mm thick



SC650 Sputter Targets

SC650 Sputter Targets

These targets are fitted to the SC650 and SC650A sputter coaters. Targets are 0.1mm thick and bonded onto aluminium backing plates (set of four)





Part number Description
  • SC650-314A Gold (Au)
  • SC650-314B Gold/palladium (Au/Pd)
  • SC650-314C Platinum (Pt)
  • SC650-314D Nickel (Ni)
  • SC650-314E Silver (Ag)



Tarjetas EMITECH

  • EK 5015 - K550X Au customer care kit
  • EK 5020 - K550X Au/Pd customer care kit
  • EK 5025 - K550X Pt customer care kit
  • EK 5030 - K575X Cr customer care kit
  • EK 3035 - K575X Au customer care kit
  • EK 5040 - K575X Au/Pd customer care kit
  • EK 5045 - K575X Pt customer care kit
  • E7400-314A - Au Target 0.2mm Thick
  • E7400-314B - Au/Pd Target 0.2mm Thick
  • E7400-314C - Pt Target 0.2mm Thick
  • T8898 - Target Au 60mm x 0,1mm Edwards S150B
  • T8837 - Target Au/Pd 54mm Balzer
  • T8881 - Target Au para Edwards 306-76mm
  • T8838 - Target Au 54mm
  • EK 8842 - Target Au 60mm
  • EK 8843 - Target Au/Pd
  • T8866 - Target Au 46mm x 0,1mm para Jeol
  • T8852 - Target Au 57mm dimetro
  • T8839 - Target Au para S150B
