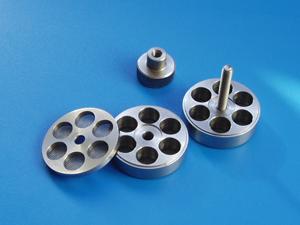

K850 Critical Point Dryer Standard specimen holder

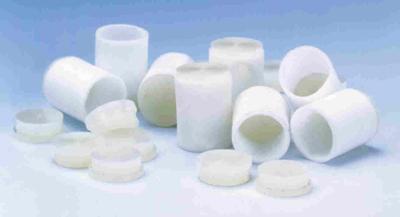

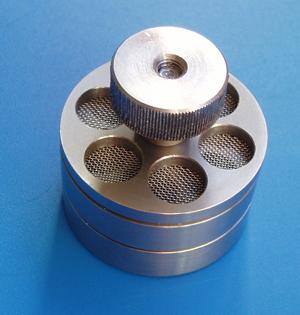

Standard specimen holder - ready to load Porous specimen pots for small or delicate specimens (CPD800A)

Descargar catálogo del
K850 en formato pdf

Critical Point Driers

Model K850

K850 Critical Point DryerThe K850 combines versatility and ease of operation. Built-in thermo-electric heating and adiabatic cooling allow precise temperature control. The vertical pressure chamber (32mm diameter x 47mm) has a side viewing port, which allows a clear view of the liquid meniscus during filling.


Key Features
  • Vertical chamber with top filling and bottom draining
  • Side viewing port - offers good visibility
  • Built-in adiabatic cooling and thermoelectric heating - accurate temperature control
  • Fine control needle valve pressure let down - precise control of decompression avoids potential damage to specimens by uncontrolled pressure release
  • Built-in magnetic stirrer- enhanced solvent exchange
  • Temperature monitoring and control with thermal cut-out protection
  • Pressure monitoring with safety cut-out for over pressure
  • Easy to operate valves - light finger pressure only is needed to open and close
  • Safe operation - every K850 Critical Point Dryer is pressure tested to 2,500psi, fitted with a safety bursting disc and issued with a pressure certificate
  • Three-year warranty


Product Description

The K850 is fitted with thermo-electronic heating and adiabatic cooling and temperature control of +5°C cooling and +35°C during heating. This allows pre-cooling of the chamber and ensures that the critical point is accurately obtained.

The K850 is fitted with three valves: fluid inlet, flushing and a gas venting system which uses a fine needle valve to give controlled pressure let down. A built-in magnetic stirrer ensures thorough mixing of specimens with circulating fluids.

The standard specimen holder has 12 individual wells (8mm diameter x 8mm high) and allows easy exchange and transfer to and from the K850. For very small specimens CPD800A porous pots are available.


Specifications of the K850 CPD
  • Instrument Case: 450mm W x 350mm D x 175mm H
  • Weight: 12Kg
  • Specimen Chamber: 32mm Dia x 47mm High Internal (Tested to 3000 psi)
  • Temperature Gauge: 0 - 120oC
  • Thermal Cut-Out: 40oC
  • Pressure Gauge: 0 - 3000 psi
  • Pressure Safety Cut Out: At 1700 psi
  • Cooling/Heating: +5oC to +35oC
  • 4 x On/Off Valves: Cool/Fill/Out/Bleed
  • 1 x Needle Valve Letdown: Fine Bleed - (In Series With Bleed)
  • Includes:: 1 x Specimen Holder Stainless Steel (12 compartments 8mm x 8mm) -10 x PTFE Pourous Specimen Pots (18mm x 14mm Pack 10)
  • NOTE: Flow Guage Monitor option fitted externally in series with fine bleed.(0-2.2L/Min - CP03266-18)
  • Services
  • CO2: gas cylinder (local supply) high pressure hose for direct connection (included with Instrument)
  • Electrical Supply: 230 Volts 50Hz (3 Amp max.)
